Inline Extractor Mixed Flow Fan 4" 5" 6" 8" 10" 12"
Inline Extractor Mixed Flow Fan 4" 5" 6" 8" 10" 12"
Regular price
£43.00
Regular price
Sale price
£43.00
Unit price
/
per
Taxes included.
In stock
Couldn't load pickup availability
Description
Description

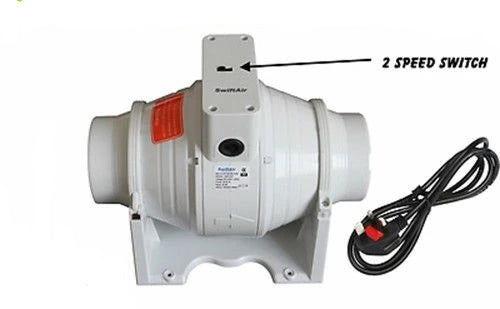

XFLO Standard Model with Plug
Standard Model Comes with wired plug how ever this does not need to be used if not needed
SMF fans are applied for supply and exhaust ventilation systems of commercial, office, tents, carbon filters and other premises etc.
Compatible with Ø 100, 125, 150 & 200mm round air ducts.
Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.
A dynamic balanced impeller
Overheating protection
Motor protection rating IP X4
Instalation to the wall or ceiling can be performed by means of mounting bracket (included).
The fan can be mounted at any angle.
Air Flow (Free Air)
100mm (4") - 220m3/hr (61l/s)
125mm (5") - 330m3/hr (92l/s)
150mm (6") - 530m3/hr (147l/s)
200mm (8") - 820m3/hr (228l/s)
250mm (10") - 1405m3/hr (390l/s)
315mm (12") - 2206m3/hr (612l/s)
Sizes/Types
100mm (4") - XFLO100
125mm (5") - XFLO125
150mm (6") - XFLO150
200mm (8") - XFLO200
250mm (10") - XFLO250
315mm (12") - XFLO315
Wattage
100mm (4") - 24/30w
125mm (5") - 26/33w
150mm (6") - 40/50w
200mm (8") - 100/130w
250mm (10") - 165/225w
315mm (12") - 275/380w
Sound Level dBA
100mm (4") - 35
125mm (5") - 37
150mm (6") - 44
200mm (8") - 48
250mm (10") - 66
315mm (12") - 69
