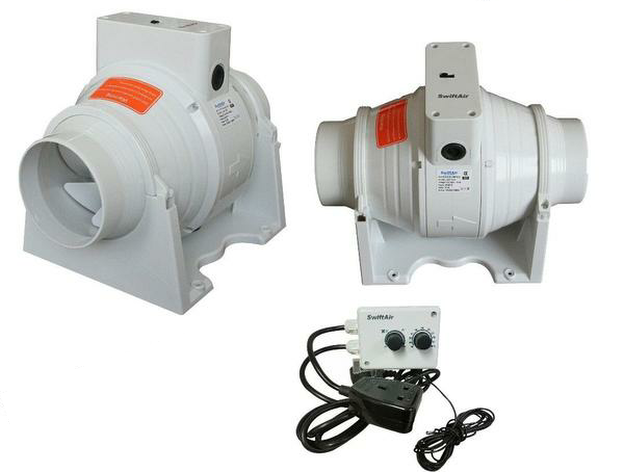

4" 5" 6" 8" 10" 12" XFLO Inline Temperature & Speed Control Fan

4" 5" 6" 8" 10" 12" XFLO Inline Temperature & Speed Control Fan
Regular price £46.99





Please select your fan size

You will receive a temperature speed controller with fan

---------------

Swiftair Temperature Hydroponics Fan Speed Controller Fan Speed Silent Climate





The controller is equipped with an electronic temperature and speed control unit and automatically changes the

speed (airflow rate) with respect to the temperature in the ventilation duct or in the premises.

The front panel of the controller has the following controls and indicators:

Speed control knob for low speed setting

Temperature control knob for temperature setting

Thermostat operating indicator (LED light)

3m long probe attached

Set the desired air temperature (thermostat set point) by turning the thermostat control knob to the airflow rate desired by turning the speed control knob.

If the air temperature increases above the thermostat set point the fan switches to the high speed (maximum airflow rate). If the temperature decreases below the thermostat set point  the fan switches to the pre-set lower speed.

To avoid frequent motor speed switches when the air temperature in the duct is equal to the set temperature point, the speed switch delay is activated. There are two switch delay patterns for various cases.

The temperature sensor-based feedback delay:

The motor switches to high speed as the air temperature exceeds 2 ° C above the set thermostat set point.



The motor revers to the pre-set lower speed as the air temperature drops below the thermostat set point. This pattern is used to keep air temperature to within 2 ° C In this case the motor speed switches are rare.





-----------------



XFLO mixed flow fan



XFLO fans are applied for supply and exhaust ventilation systems of commercial, office and other premises. Compatible with Ø 100, 125, 150, & 200mm round air ducts.

Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.

A dynamic balanced impeller

Overheating protection

Motor protection rating IP X4

1 Year Warranty



Installation to the wall or ceiling can be performed by means of mounting bracket (included). The fan can be mounted at any angle. Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box.



Airflow

100 - 220 m3/h

125 - 330 m3/h

150 - 530 m3/h

200 - 820 m3/hr



Noise Level



NOISE LEVEL 35 dBA @ 3m - 100

NOISE LEVEL 37 dBA @ 3m - 125

NOISE LEVEL 44 dBA @ 3m - 150

NOISE LEVEL 48 dBA @ 3m - 200







Please not we are changing the name from SMF to XFLO

  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •






Please select your fan size

You will receive a temperature speed controller with fan

---------------

Swiftair Temperature Hydroponics Fan Speed Controller Fan Speed Silent Climate





The controller is equipped with an electronic temperature and speed control unit and automatically changes the

speed (airflow rate) with respect to the temperature in the ventilation duct or in the premises.

The front panel of the controller has the following controls and indicators:

Speed control knob for low speed setting

Temperature control knob for temperature setting

Thermostat operating indicator (LED light)

3m long probe attached

Set the desired air temperature (thermostat set point) by turning the thermostat control knob to the airflow rate desired by turning the speed control knob.

If the air temperature increases above the thermostat set point the fan switches to the high speed (maximum airflow rate). If the temperature decreases below the thermostat set point  the fan switches to the pre-set lower speed.

To avoid frequent motor speed switches when the air temperature in the duct is equal to the set temperature point, the speed switch delay is activated. There are two switch delay patterns for various cases.

The temperature sensor-based feedback delay:

The motor switches to high speed as the air temperature exceeds 2 ° C above the set thermostat set point.



The motor revers to the pre-set lower speed as the air temperature drops below the thermostat set point. This pattern is used to keep air temperature to within 2 ° C In this case the motor speed switches are rare.





-----------------



XFLO mixed flow fan



XFLO fans are applied for supply and exhaust ventilation systems of commercial, office and other premises. Compatible with Ø 100, 125, 150, & 200mm round air ducts.

Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.

A dynamic balanced impeller

Overheating protection

Motor protection rating IP X4

1 Year Warranty



Installation to the wall or ceiling can be performed by means of mounting bracket (included). The fan can be mounted at any angle. Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box.



Airflow

100 - 220 m3/h

125 - 330 m3/h

150 - 530 m3/h

200 - 820 m3/hr



Noise Level



NOISE LEVEL 35 dBA @ 3m - 100

NOISE LEVEL 37 dBA @ 3m - 125

NOISE LEVEL 44 dBA @ 3m - 150

NOISE LEVEL 48 dBA @ 3m - 200







Please not we are changing the name from SMF to XFLO
