4" Inline Hydroponics Extractor Fan

4" Inline Hydroponics Extractor Fan
Regular price £24.99

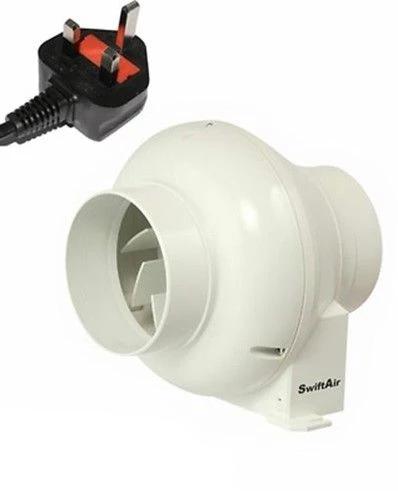

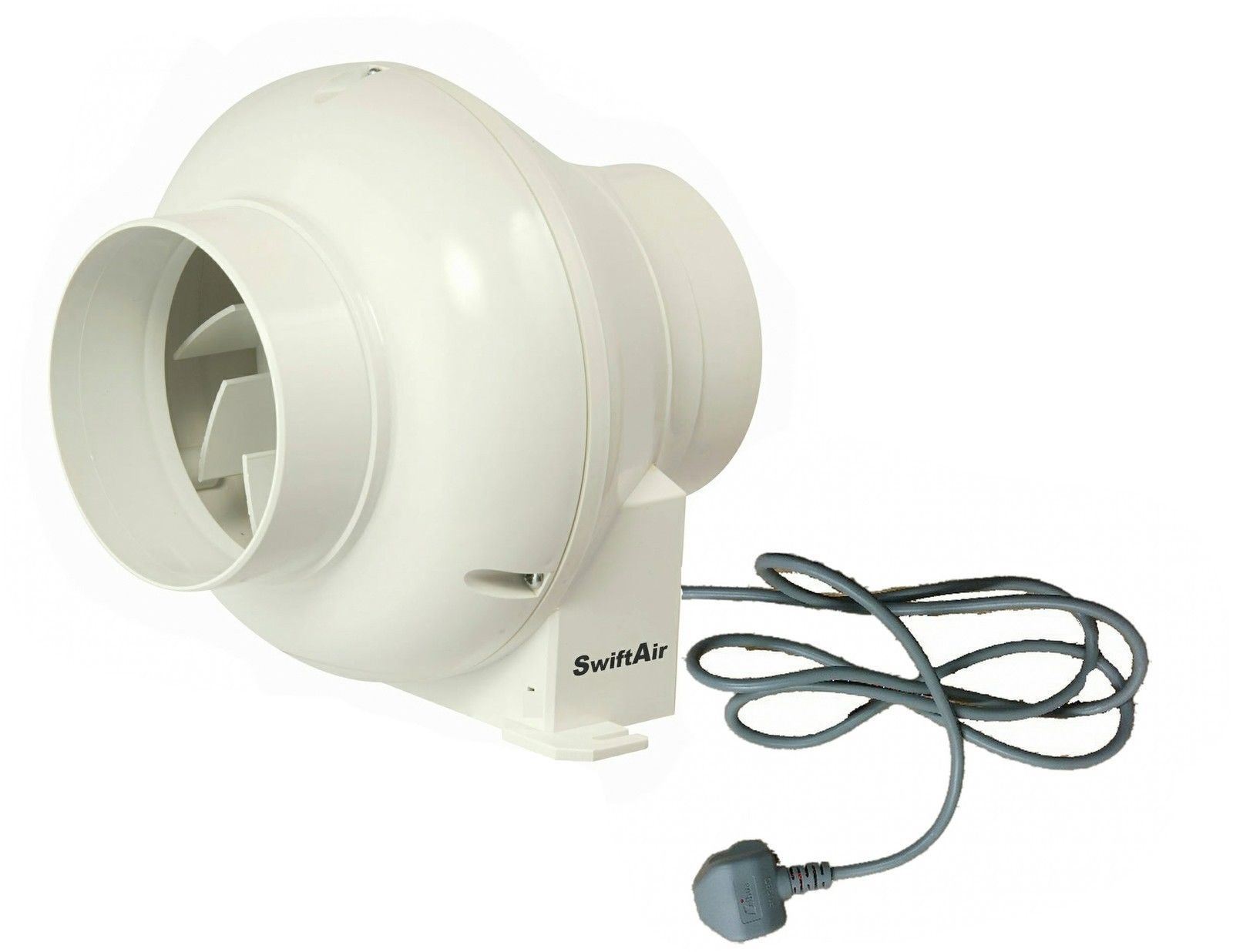

Swiftair - Inline Hydroponics Fan
ST100 fans are applied for supply and exhaust ventilation systems of commercial, office and other premises. Compatible with Ø100mm round air ducts.
Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.

Note: Please remove back draught shutter as it will make a lot of noise (However if you are ok with that then please use)

The impeller with backward curved blades is powered by a single-phase asynchronous AC motor with external rotor including the following features:
A dynamic balanced impeller with backward curved blades balanced in two planes.
Overheating protection with automatic restart.
Maintenance-free ball-bearings used with motors and designed for at least 40 000 hours operation.
Motor protection rating IP X4

Instalation to the wall or ceiling can be performed by means of mounting brackets (included in the delivery). The fan can be mounted at any angle. Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box (Wire an plug supplied plug straight in and turn on)

If you do not wish to use the plug please wire directly into terminal



  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •





Swiftair - Inline Hydroponics Fan
ST100 fans are applied for supply and exhaust ventilation systems of commercial, office and other premises. Compatible with Ø100mm round air ducts.
Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.

Note: Please remove back draught shutter as it will make a lot of noise (However if you are ok with that then please use)

The impeller with backward curved blades is powered by a single-phase asynchronous AC motor with external rotor including the following features:
A dynamic balanced impeller with backward curved blades balanced in two planes.
Overheating protection with automatic restart.
Maintenance-free ball-bearings used with motors and designed for at least 40 000 hours operation.
Motor protection rating IP X4

Instalation to the wall or ceiling can be performed by means of mounting brackets (included in the delivery). The fan can be mounted at any angle. Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box (Wire an plug supplied plug straight in and turn on)

If you do not wish to use the plug please wire directly into terminal
