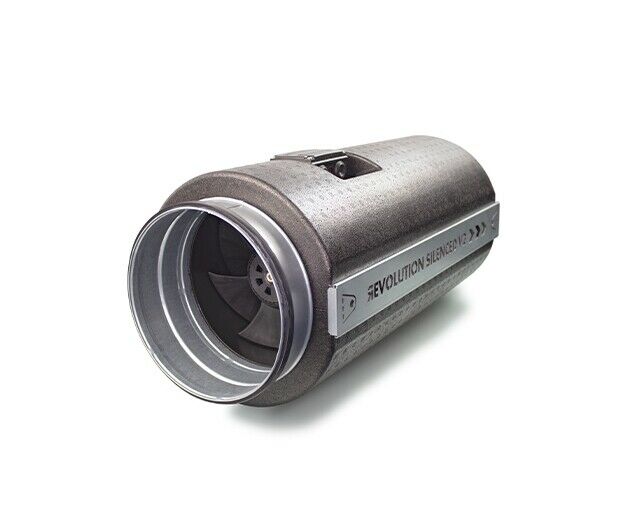

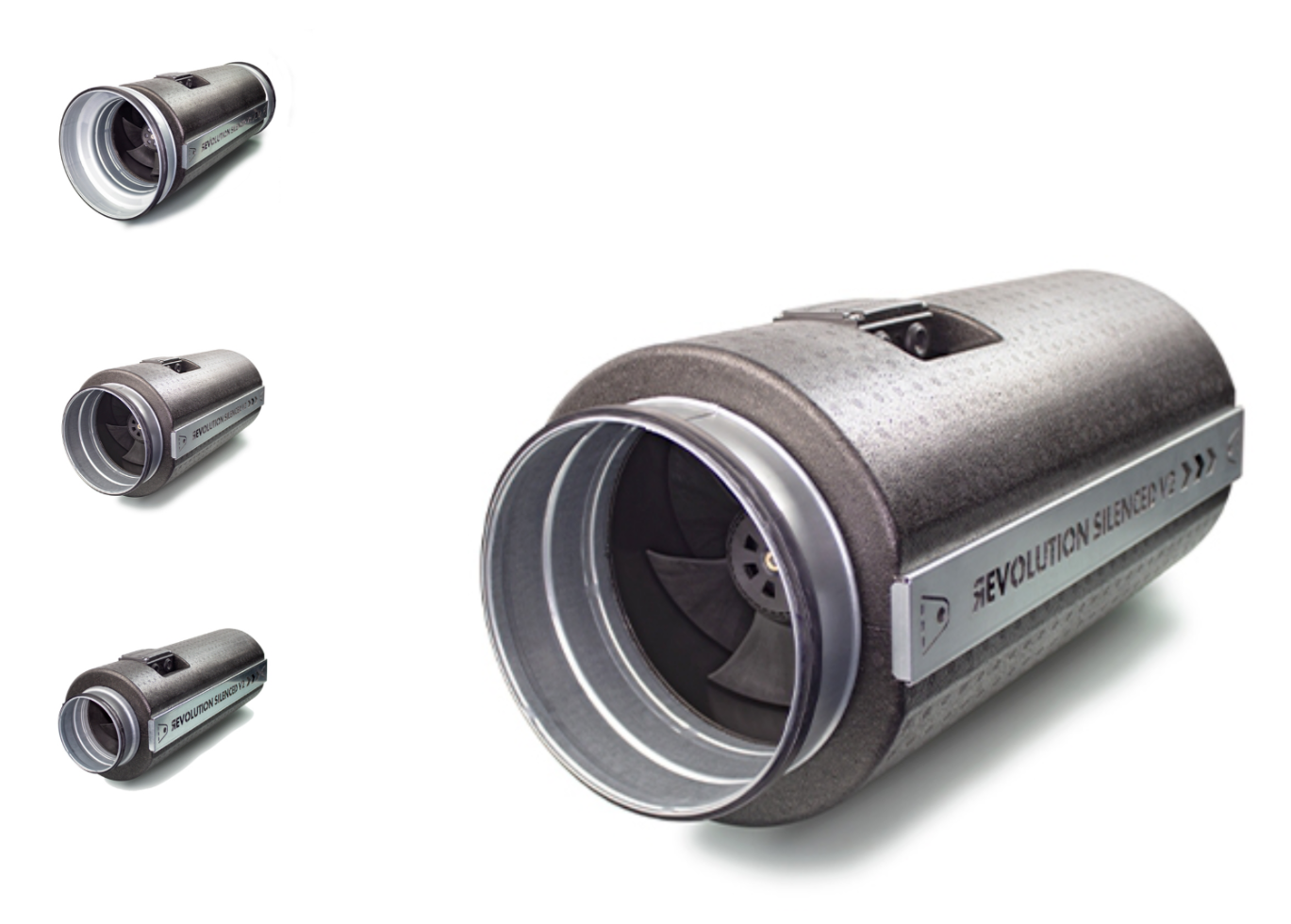

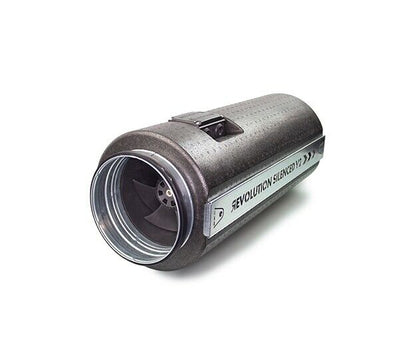

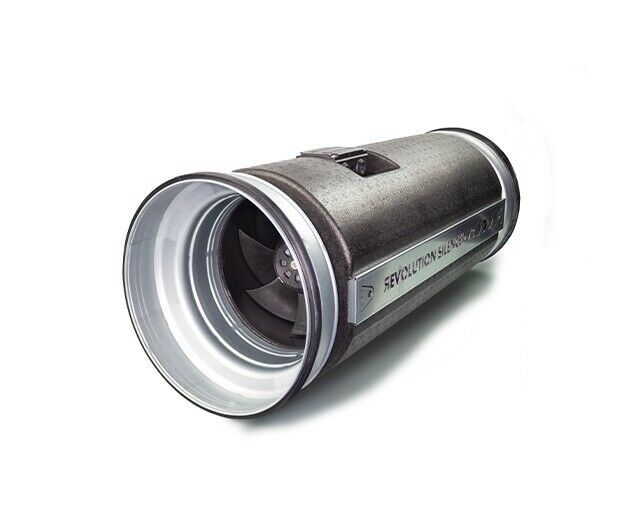

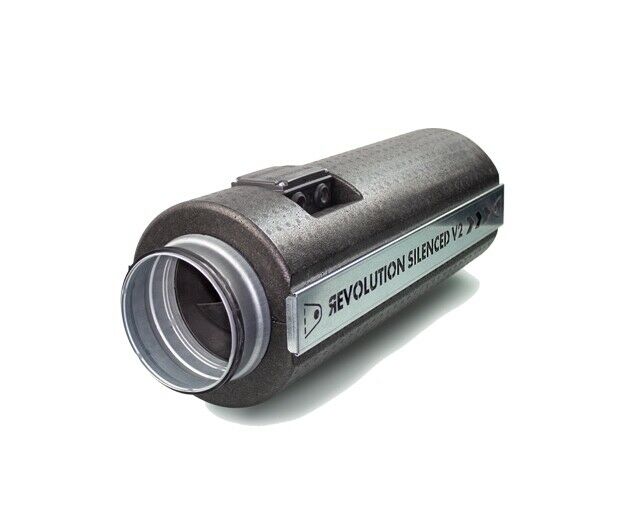

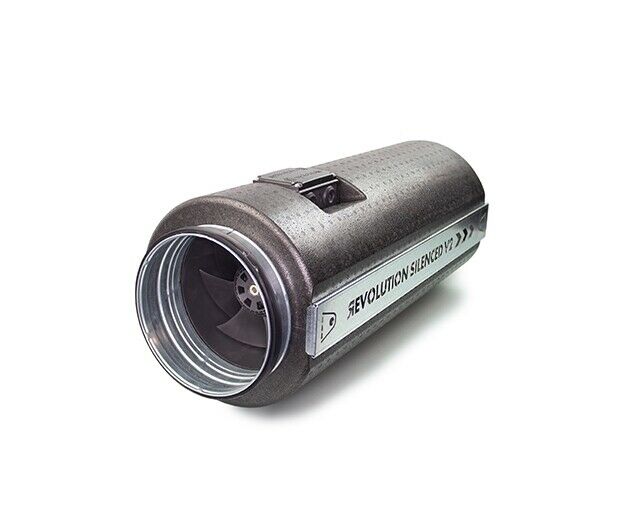

SystemAir Revolution Stratos AC / Vector EC Fan (Silenced) V2

Revolution Silenced V2

The latest revolution from Global Air Supplies has arrived - Revolution Silenced V2 is the next generation of silenced fans.

It is engineered by Systemair to be lighter, quieter, and maintain all the advantages of the original model. The Revolution Silenced V2 raises the bar and is the ultimate sound-absorbing fan.

The new sealed housing is the culmination of a team of engineers who developed a new and novel solution to reduce the noise of airflow. Revolution fans have silent motors and double-balanced blades. However, the powerful aerodynamically optimised blades and guide vanes create fast, high-pressure air flows that can cause issues with noise.

Revolution Silenced V2’s new housing incorporates a sound-reducing foam designed specifically for ventilation systems. It does not absorb moisture or dust. The metal flanges are inserted into the housing with rubber grommets to form a seal. The fan, flanges and the silencing tube seal into a light, sturdy, and moulded outer-body, deadening sound.

AC

200mm - 956m³/h, 44dB 72W

250mm - 2039m³/h, 48dB 200W

315mm  - 2111 m³/h,  48dB  200W

EC

150mm - 6" 764m3/hr

200mm - 8" 1345m3/hr

250mm -10" 1787m3/hr

250mm -10" 2102m3/hr

315mm - 12" 2224m3/hr

Spigot Sizes

15cm = 6" 150mm

20cm = 8" 200mm

25cm = 10" 250mm

31cm = 12" 315mm
