LUMii Contactor Timers 26 Amp - 4+2 Enviro, 6 & 8 Socket

LUMii Contactor Timers

A major problem with hydroponic lighting is timer failure, something you will NOT get with our LUMii Contactor Timers.

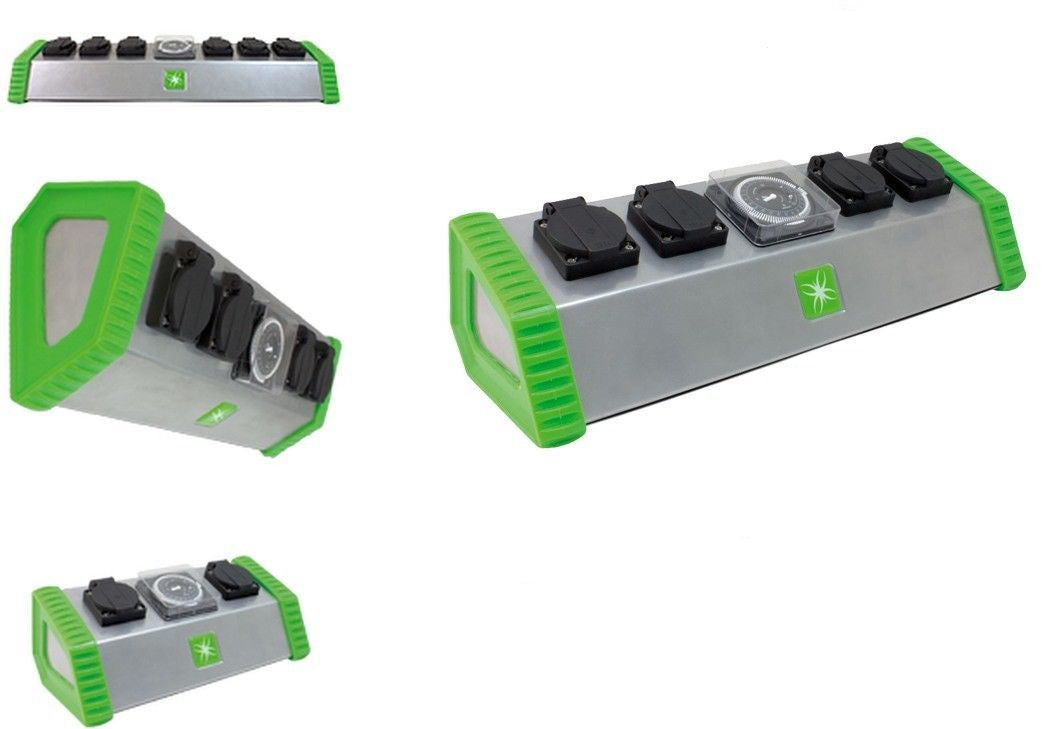

Available as the 4+2 Socket Enviro, 6 Socket and 8 Socket units – all sizes boast the world leading Grasslin timer and are designed, assembled and quality checked in the UK. The LUMii contactor timers are the most robust and professional on the market.

The 6 and 8 socket units are fitted with protection covers for all sockets and floor pads for floor use. All units come with brackets, so they are wall mountable and can be hung in a grow tent.

LUMii 4+2 Socket Enviro Contactor Timer - 26 Amp

The LUMii 4+2 Socket Enviro Contactor Timer is an ideal means to control HID lighting and heating in your growing environment through the 24-hour diurnal cycle. The world leading Grässlin timer allows on/off times to be set with precision in 15-minute gradations. The heavy-duty contactor will power four sockets for HID lamps and one (switched) for a heater, without the load causing harm to the timer, such that when the lights are on, the heater is off, and vice versa. A sixth, untimed utility socket, controlled by its own switch, can be used for any other electrical application.

Key selling points

• Designed and assembled in UK
• Brackets provided for wall mounting or hanging from tent poles
• Robust and durable
• Up to 26 amps maximum load

Technical specifications

• Voltage 230V-240V AC
• Maximum load 26 Amps, 13 Amps each side
• 2 x 13 Amp mains plugs
• Output socket capacities: max 13 Amps total each side of the timer dial
• Left side: Socket H (Heater) + 2 x Sockets B (Lighting)
• Right side: 2 x Sockets B (Lighting) + Socket U (Switched Utility)

Why is the output capacity limited to 13 Amps each side of the timer dial?

The Contactor Timer has two 13 Amp plugs to connect to the mains. One of these provides power to the three output sockets positioned to the left of the timer dial, and the other provides power to the three output sockets to the right. At the left side, the Heater "H" socket is only powered when the 2 Lighting "B" sockets are not powered, so the heater socket has a maximum capacity of 13 Amps and the two lighting sockets share a maximum capacity of 13 Amps. At the right side, all three sockets can be powered at once when the Utility socket is switched on, so the total capacity of 13 Amps must be shared. The capacity of the Utility socket depends on the power being drawn by the two lighting sockets (see the table above).
