Phonic Phonitec Trap Acoustic Ducting

Phonic Phonitec Trap Acoustic Duct 3m 6m 10m Ventilation Extraction Hydroponics
Regular price £18.99

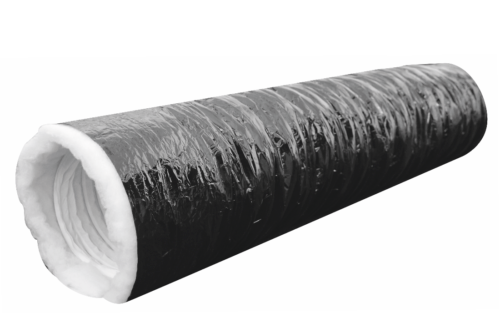

The NON-WOVEN PMP BLACK consists of a Polypropylene fabric cloth inner duct, thermically and acoustically insulated with a Polypropylene insulation layer and provided with a black polyester outer jacket.  The inner duct is hydrophobic and Anti-Bacterial.



 APPLICATION:



Air-conditioning systems

Air supply systems

Preventing condensation in air ventilation systems

Decreasing of machine noises



SPECIFICATIONS  PRESSURE LOSS (STRAIGHT DUCT) Article code: SBIPMPB{Ø}NW



 Temperature range: -30 ⁰C to 140 ⁰C

  Operating pressure: up to +2500 Pa Operating air velocity: max. 25 m/s Min.

bending radius: 0.54 x Ø + 25mm

Standard diameter range: 102 – 406 mm

Standard length: 3, 6 and 10 mtr



CONSTRUCTION

Inner duct: Non-woven Polypropylene fabric cloth

Insulation blanket PP: 25mm, 16kg/m³

Outer jacket: Poly laminate R-value glass wool: 0.55 m² K/W (ASTM C177-76)

Appearance: Black

The NON-WOVEN PMP BLACK fulfils all the requirements and are classified as specified within EN 13180: Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts.



  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •


The NON-WOVEN PMP BLACK consists of a Polypropylene fabric cloth inner duct, thermically and acoustically insulated with a Polypropylene insulation layer and provided with a black polyester outer jacket.  The inner duct is hydrophobic and Anti-Bacterial.



 APPLICATION:



Air-conditioning systems

Air supply systems

Preventing condensation in air ventilation systems

Decreasing of machine noises



SPECIFICATIONS  PRESSURE LOSS (STRAIGHT DUCT) Article code: SBIPMPB{Ø}NW



 Temperature range: -30 ⁰C to 140 ⁰C

  Operating pressure: up to +2500 Pa Operating air velocity: max. 25 m/s Min.

bending radius: 0.54 x Ø + 25mm

Standard diameter range: 102 – 406 mm

Standard length: 3, 6 and 10 mtr



CONSTRUCTION

Inner duct: Non-woven Polypropylene fabric cloth

Insulation blanket PP: 25mm, 16kg/m³

Outer jacket: Poly laminate R-value glass wool: 0.55 m² K/W (ASTM C177-76)

Appearance: Black

The NON-WOVEN PMP BLACK fulfils all the requirements and are classified as specified within EN 13180: Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts.
