RAM AirTECH Carbon Filters - MIDI & HEAVY

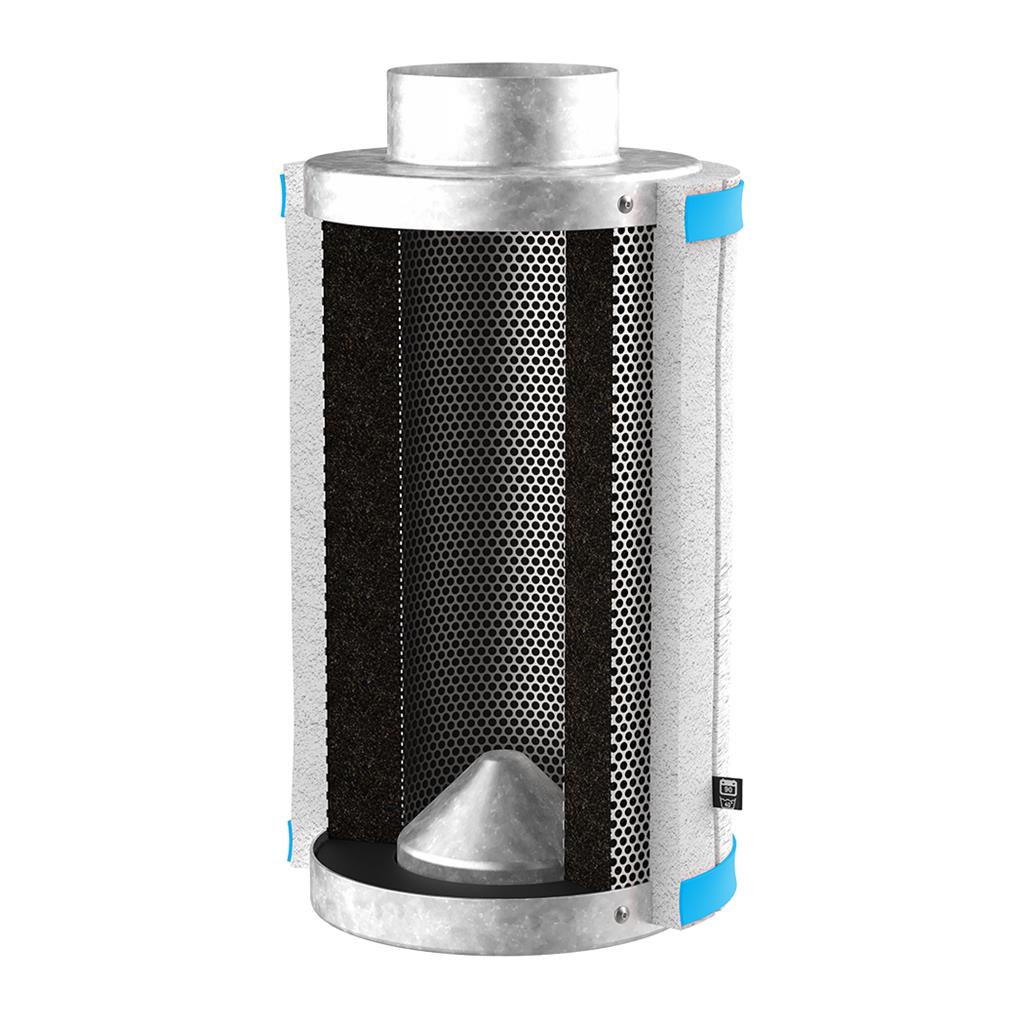

RAM AirTECH carbon filters are high-quality, long-life air filters using premium Australian activated carbon. The carbon filling is machine-packed for superior compaction, and the compaction is maintained by a ring of Acoustafoam expanding compaction foam. The deep carbon bed is confined within concentric mesh cylinders made from rugged perforated Zintec sheet, with end caps also made of Zintec for strength. A machine-washable pre-filter sleeve is supplied, secured with elastic silicon bands at either end to stop dust clogging the filter. Even with their impressive airflow ratings, these filters capture malodorous volatiles.
Key features
- Impressive airflow
- Excellent performance - captures malodorous volatiles
- Machine-packed premium Australian activated carbon
- Compaction maintained by an Acoustafoam ring
- Rugged all-Zintec body (Zintec zinc-coated steel sheet)
- Cylindrical Zintec perforated mesh with 55% open area
- Washable pre-filter sleeve included

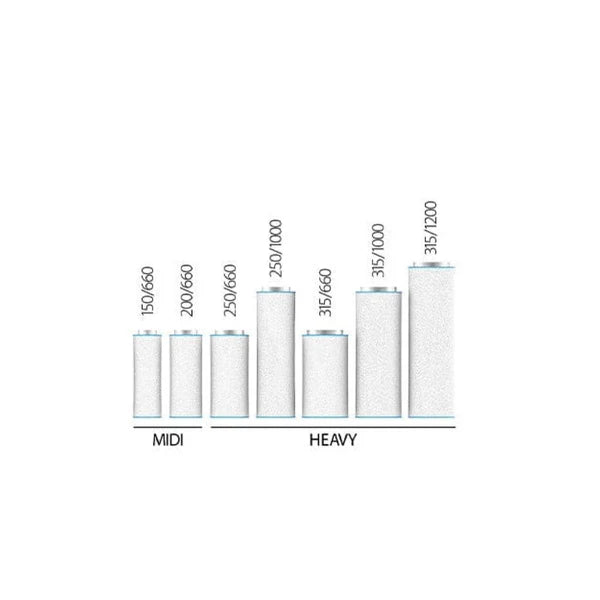

Sizes and specifications
| Range | Size (diameter/length mm) | Filter length | Carbon bed depth | Rated airflow up to |
|---|---|---|---|---|
| MIDI | 150/660 (6") | 660 mm (26") | 50mm | 1150 m³/h |
| MIDI | 200/660 (8") | 660 mm (26") | 50mm | 1350 m³/h |
| HEAVY | 250/660 (10") | 660 mm (26") | 60mm | 2000 m³/h |
| HEAVY | 250/1000 (10") | 1000 mm (39.5") | 60mm | 3100 m³/h |
| HEAVY | 315/660 (12") | 660 mm (26") | 60mm | 2450 m³/h |
| HEAVY | 315/1000 (12") | 1000 mm (39.5") | 60mm | 3600 m³/h |
| HEAVY | 315/1200 (12") | 1200 mm (47.25") | 60mm | 4250 m³/h |
Choosing the right filter
It is simplest to set up if ducting, fan and filter all have the same nominal diameter. If the diameters differ, use a filter slightly larger than the fan rather than the other way round. Ducting and a filter increase the operating pressure of the system, so the fan's actual flow rate will be lower than its free-flow rate. As a rule of thumb, choose a filter with a rated flow about 20% higher than the fan's free-flow rate. All filters work more effectively, and for longer, when the actual airflow is below the rated airflow.
