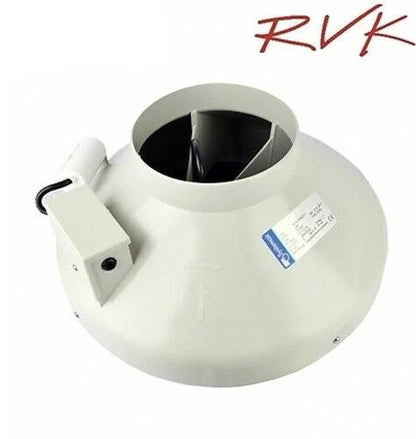

Systemair RVK Inline Duct Fan - 100mm to 315mm
Systemair RVK Inline Duct Fan - 100mm to 315mm
Couldn't load pickup availability
Description
Description

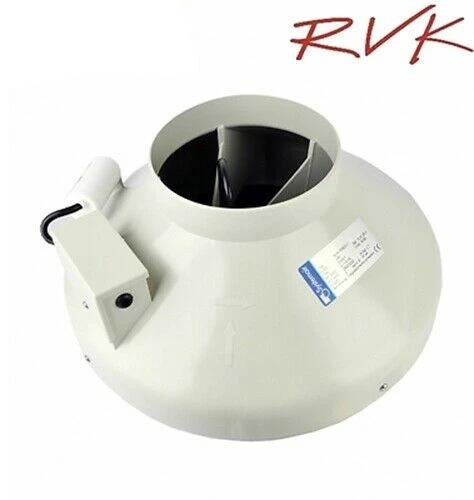

The Systemair RVK inline duct fan is an industry staple and a favourite with growers from entry level to experienced. It works as an extractor or intake fan, suits wet or damp rooms, and comes in ten models from 100mm (4") to 315mm (12").
Key features
- Energy-efficient, backward-curved motorised impeller
- Dynamically balanced impeller to reduce vibration and noise
- Robust fibreglass and polypropylene casing
- Run straight from the mains or through a speed controller to regulate speed and airflow

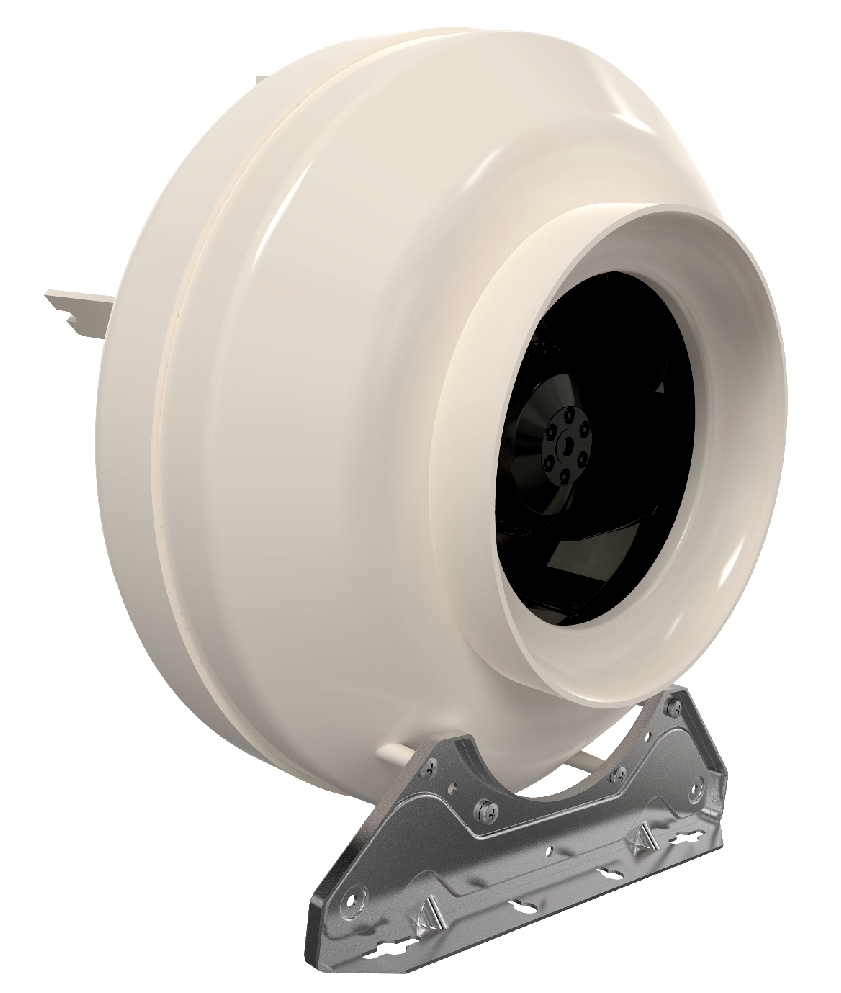

- Easy to connect and simple to install in virtually any position; mounting bracket included
- Thermal protection to prevent overheating, and an IP44 rated terminal box
- Reliable and maintenance-free, German manufacture
- Two-year warranty
Technical data
| Model | Duct size | Max airflow (m³/h) | Max airflow with filter (m³/h) | Pressure drop with filter (Pa) | Input power (W) |
|---|---|---|---|---|---|

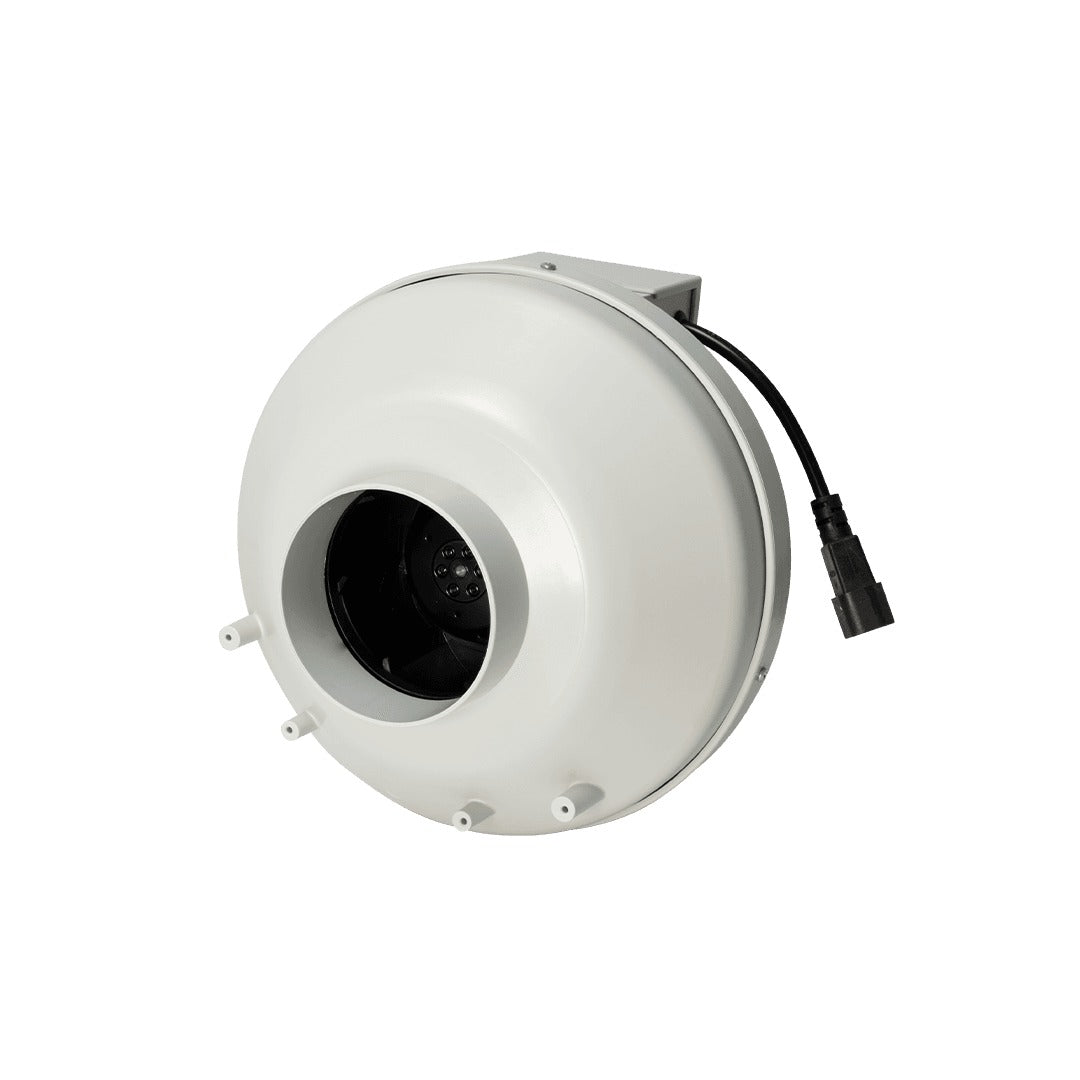

| RVK 100 A1 | 100mm (4") | 211 | 140 | 54 | 28 |

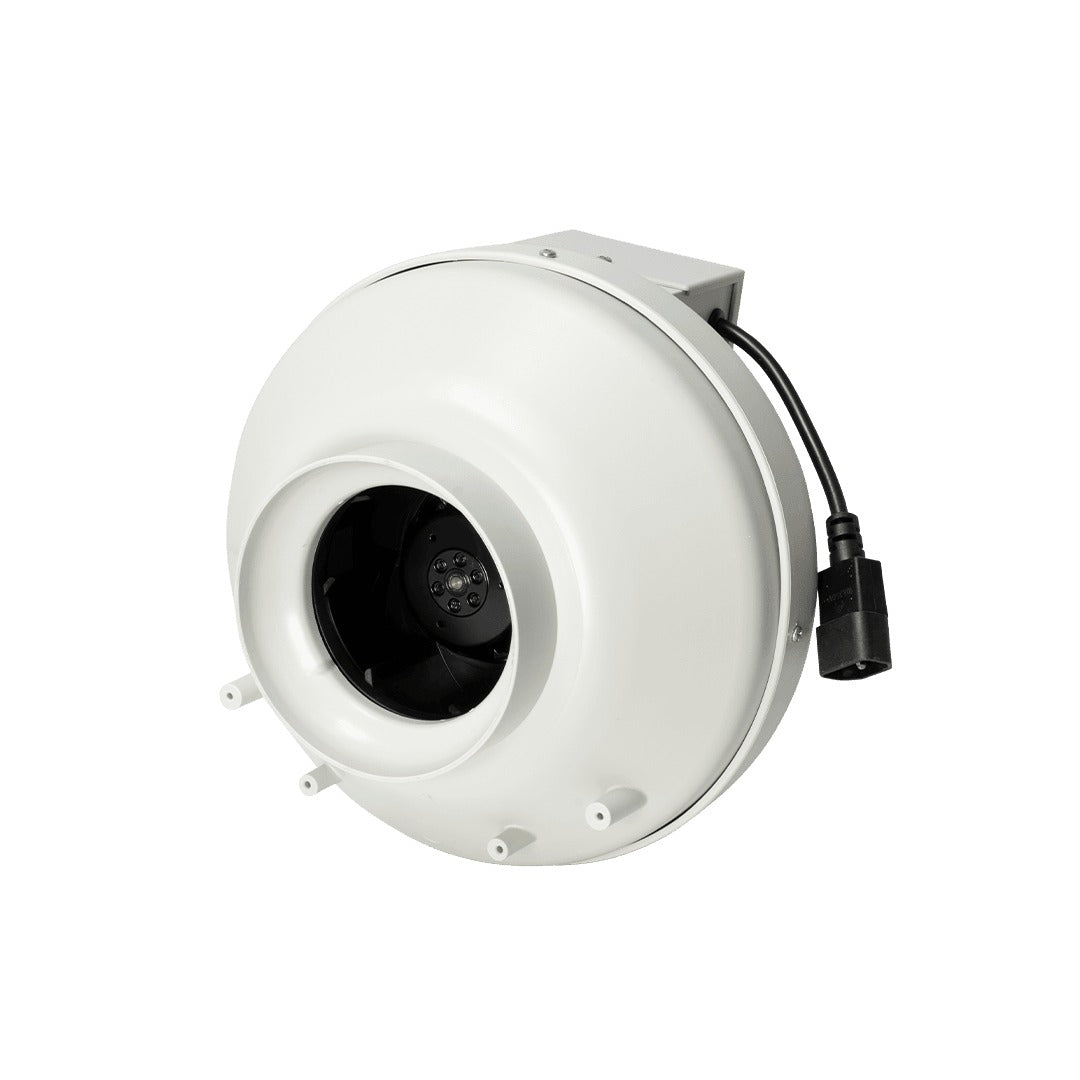

| RVK 125 A1 | 125mm (5") | 244 | 165 | 55 | 28 |

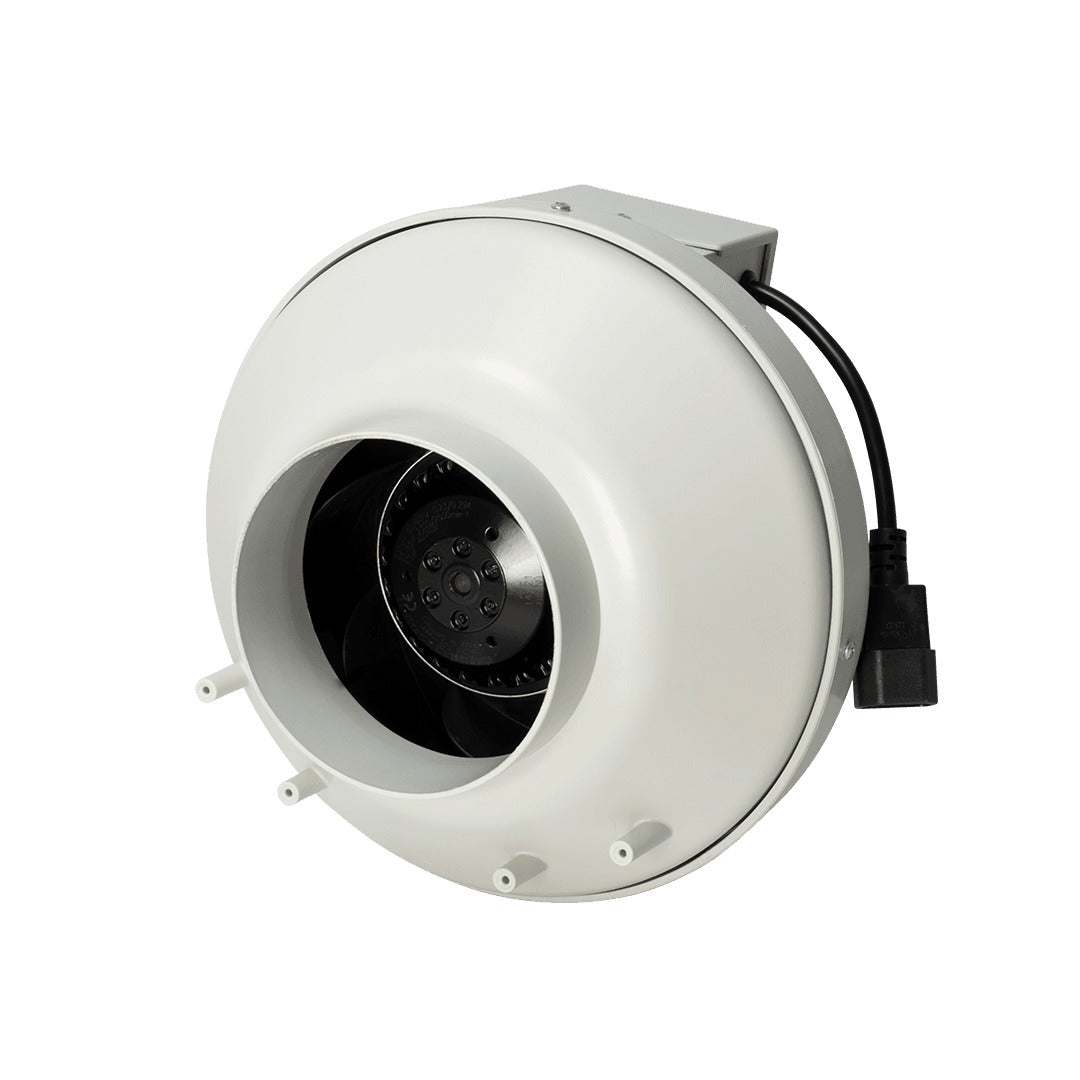

| RVK 125 L1 | 125mm (5") | 368 | 260 | 100 | 62 |

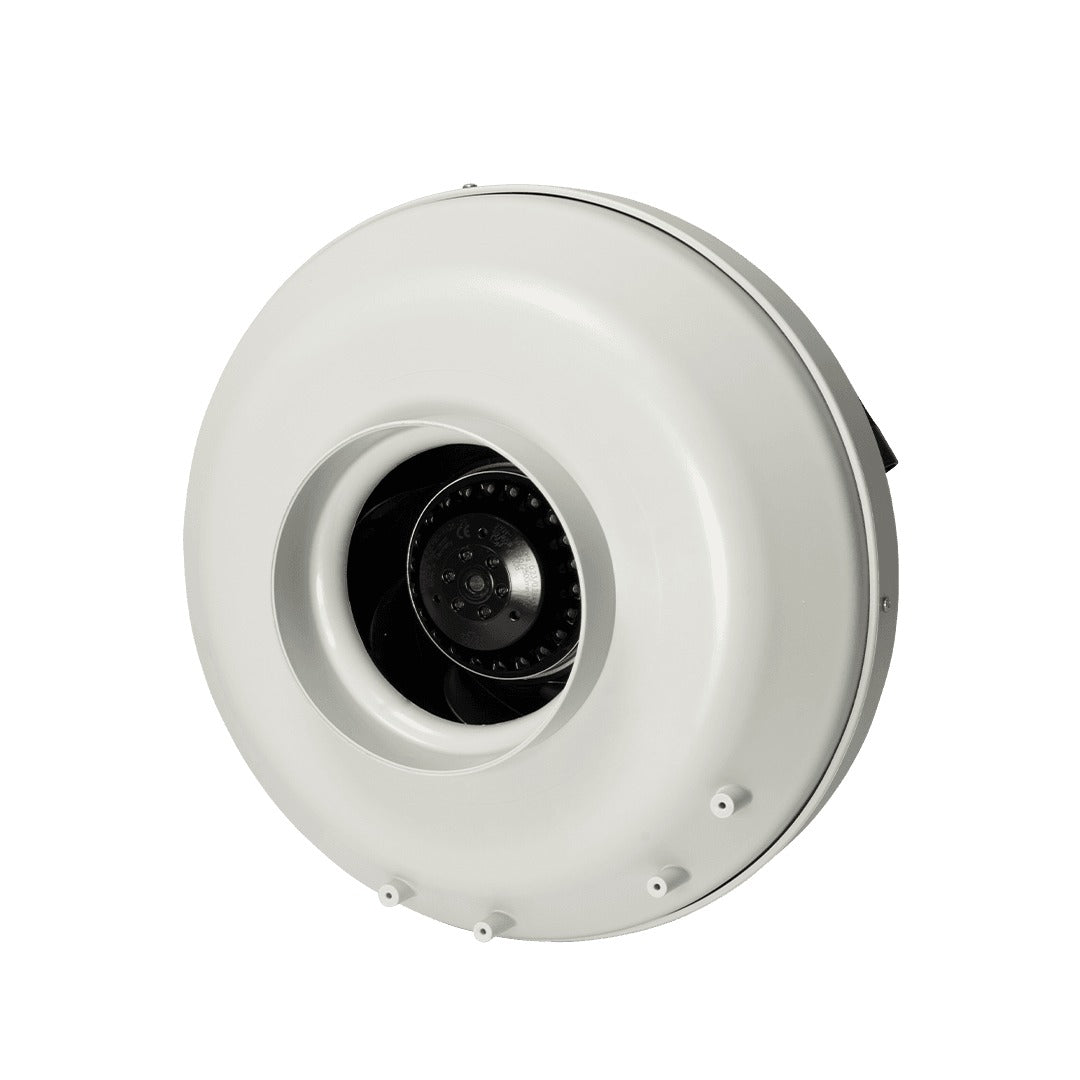

| RVK 150 A1 | 150mm (6") | 423 | 320 | 115 | 62 |

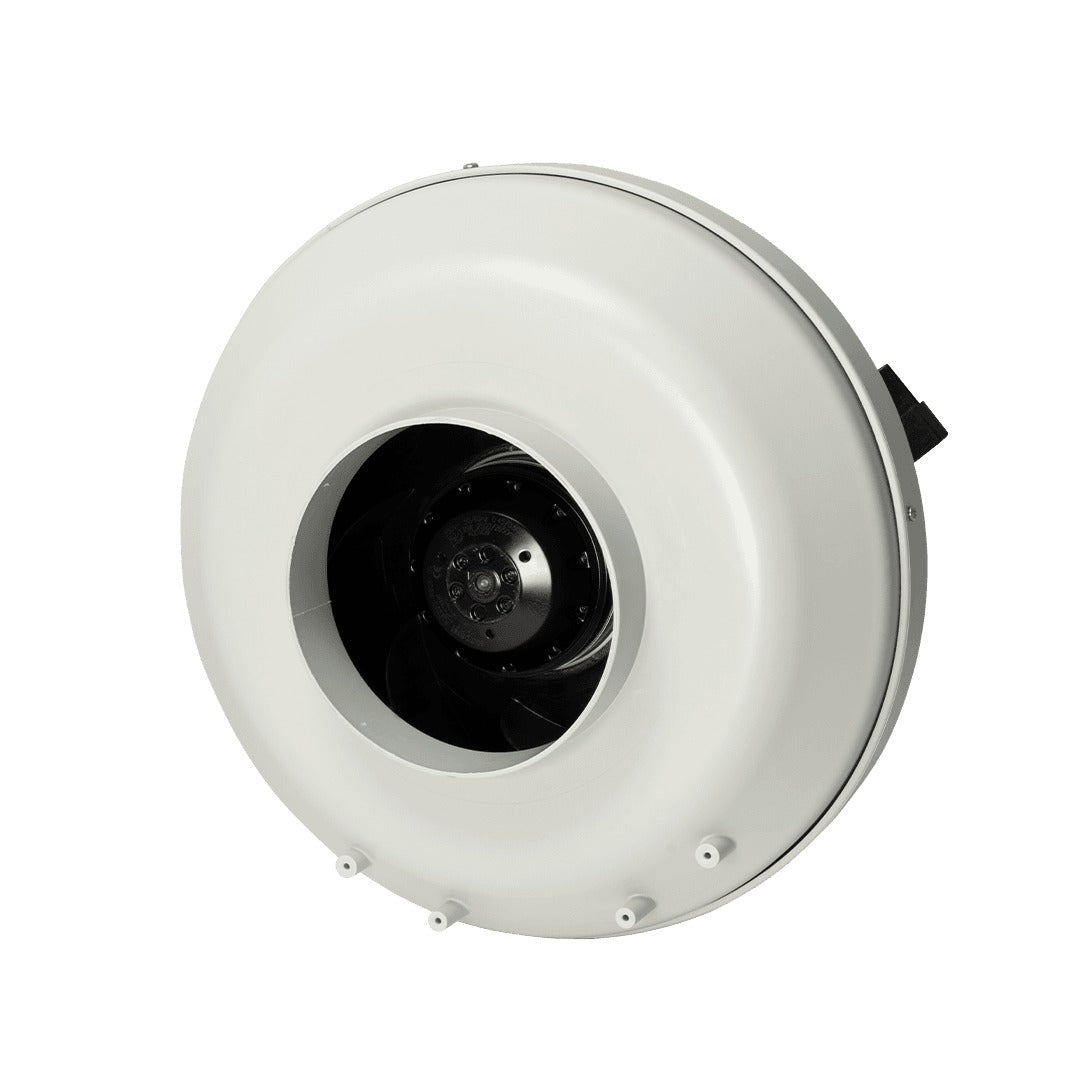

| RVK 150 L1 | 150mm (6") | 737 | 595 | 115 | 109 |

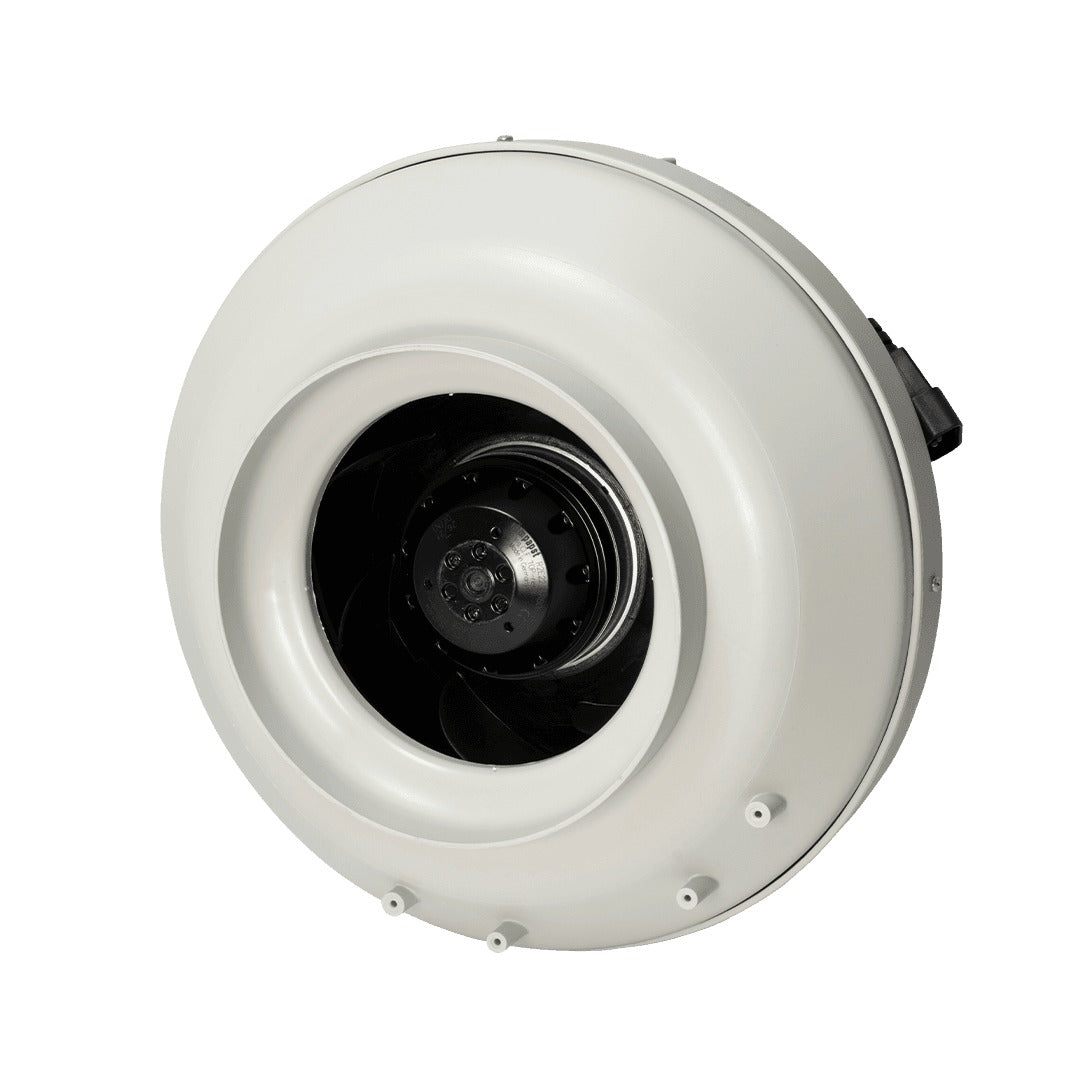

| RVK 200 A1 | 200mm (8") | 827 | 760 | 52 | 104 |

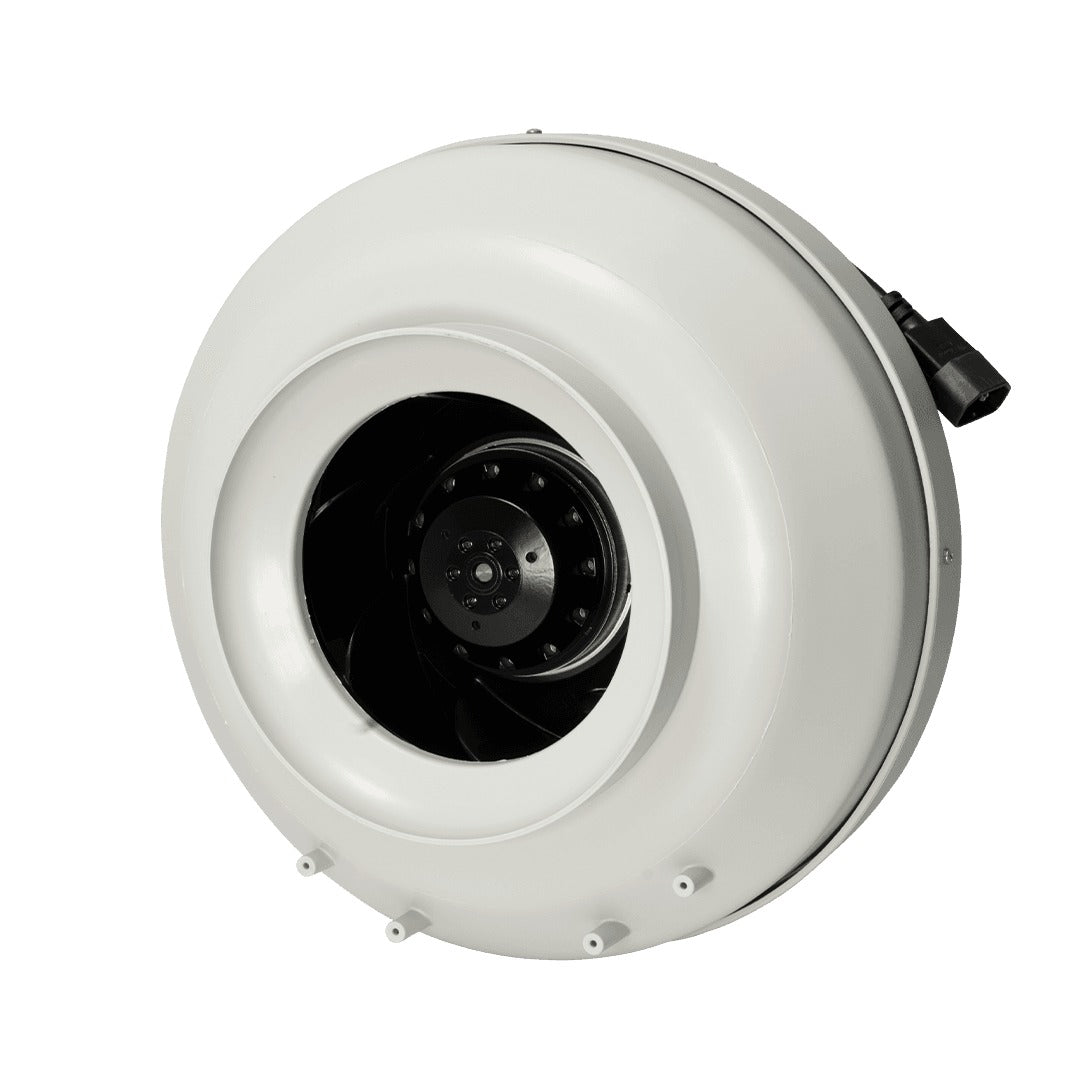

| RVK 200 L1 | 200mm (8") | 1073 | 1000 | 50 | 164 |

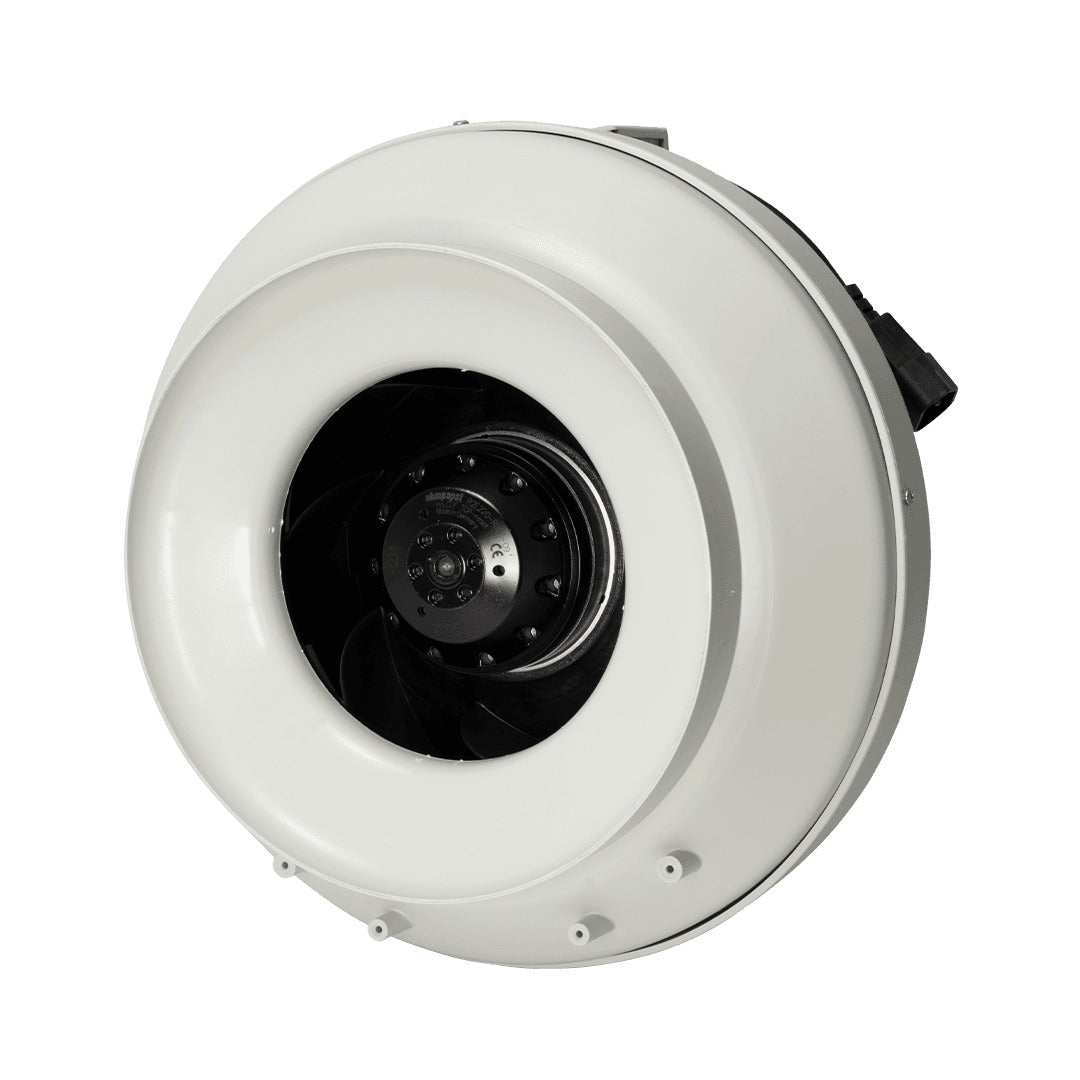

| RVK 250 A1 | 250mm (10") | 863 | 725 | 110 | 109 |

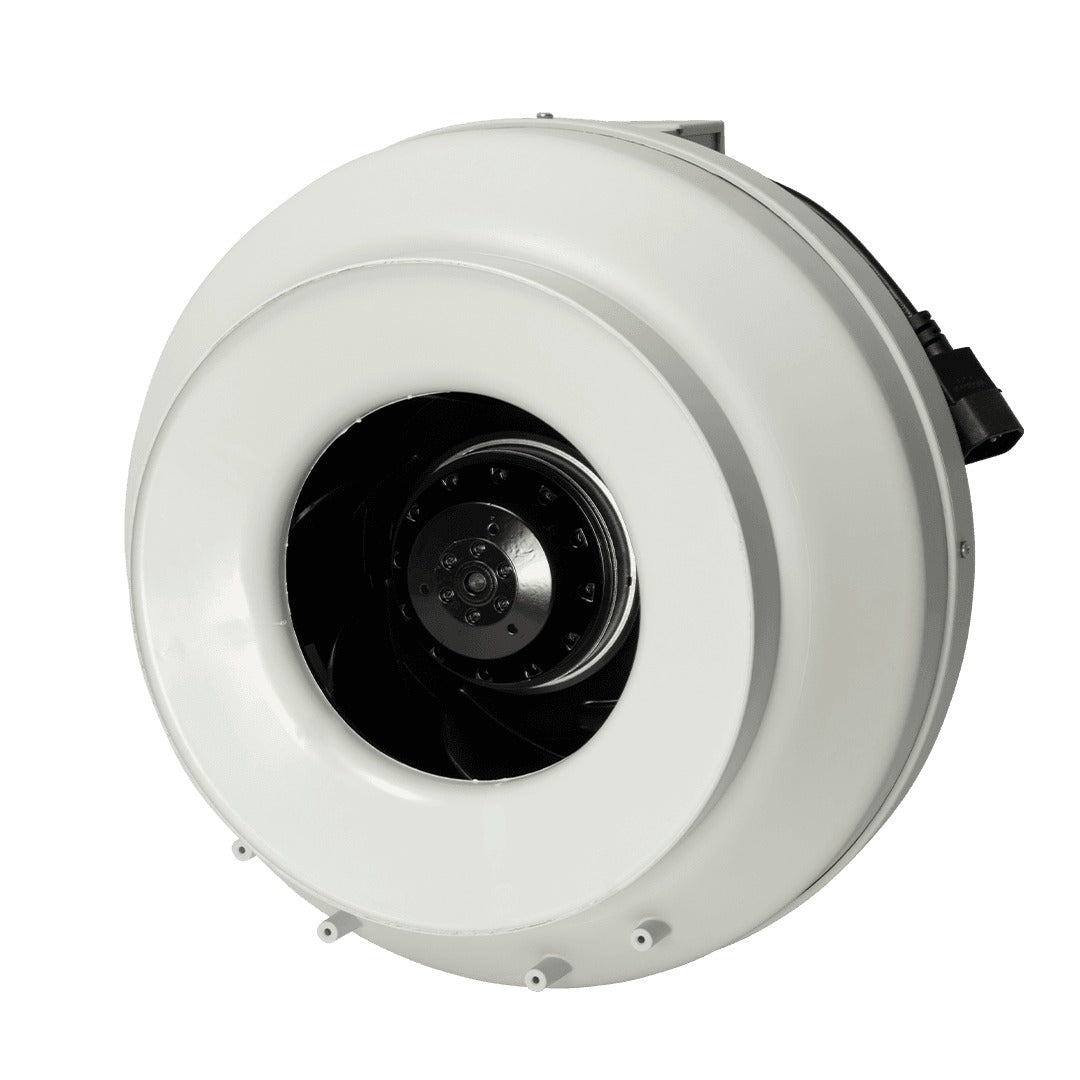

| RVK 250 L1 | 250mm (10") | 1134 | 980 | 120 | 168 |

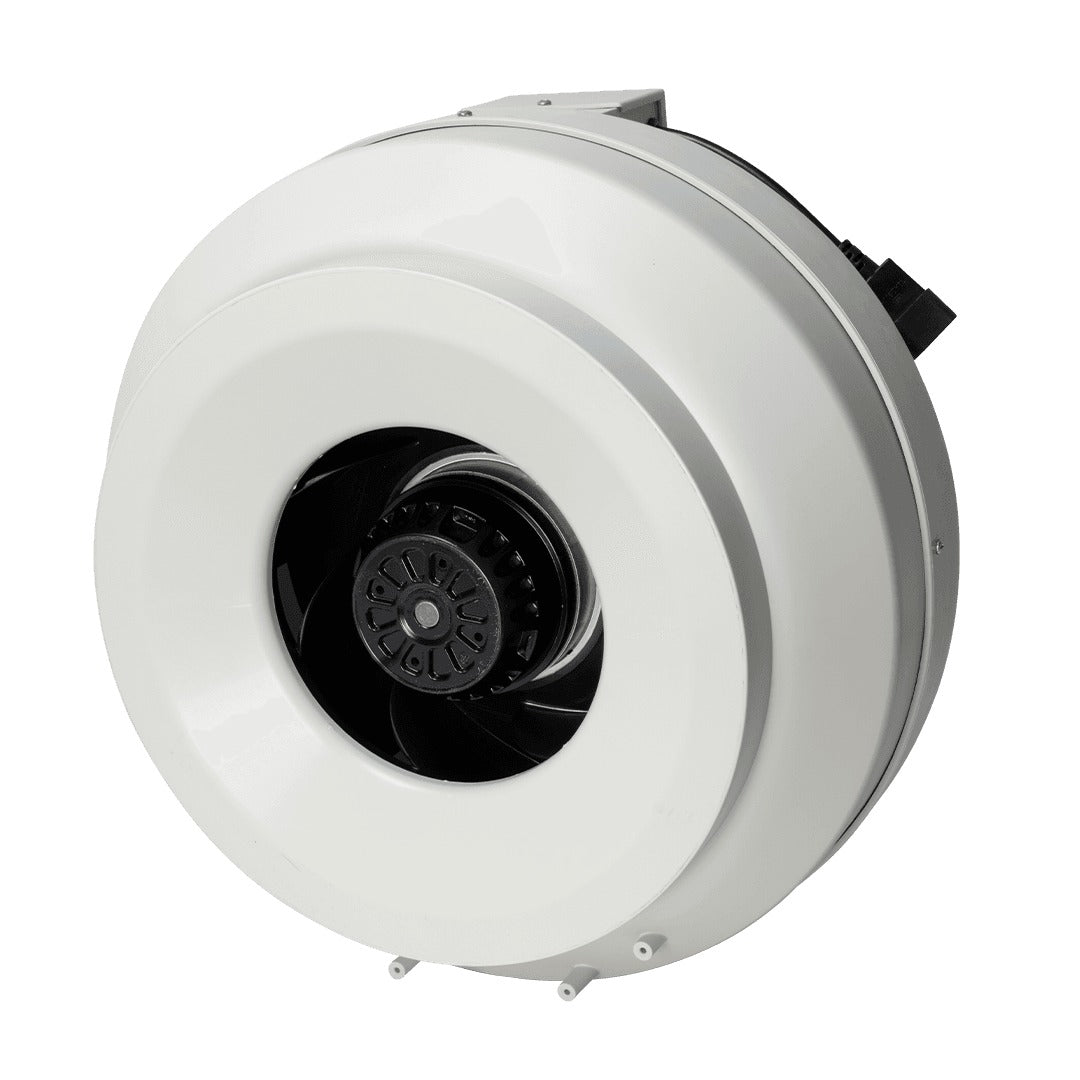

| RVK 315 A1 | 315mm (12") | 1364 | 1200 | 150 | 232 |
All models run on 230V single phase. Airflow figures are from Global Air Supplies; input power is from Systemair.
Dimensions (mm)
| Size | Duct spigot ØA/ØB | Casing ØC | Length E | Height H |
|---|---|---|---|---|
| RVK 100E2 | 99 | 251 | 237.5 | 265 |
| RVK 125E2 | 124 | 251 | 233 | 265 |
| RVK 150E2 | 149 | 341 | 230 | 360 |
| RVK 200E2 | 199 | 341 | 229 | 360 |
| RVK 250E2 | 249 | 341 | 229 | 360 |
| RVK 315E2 | 314 | 405 | 265 | 430 |

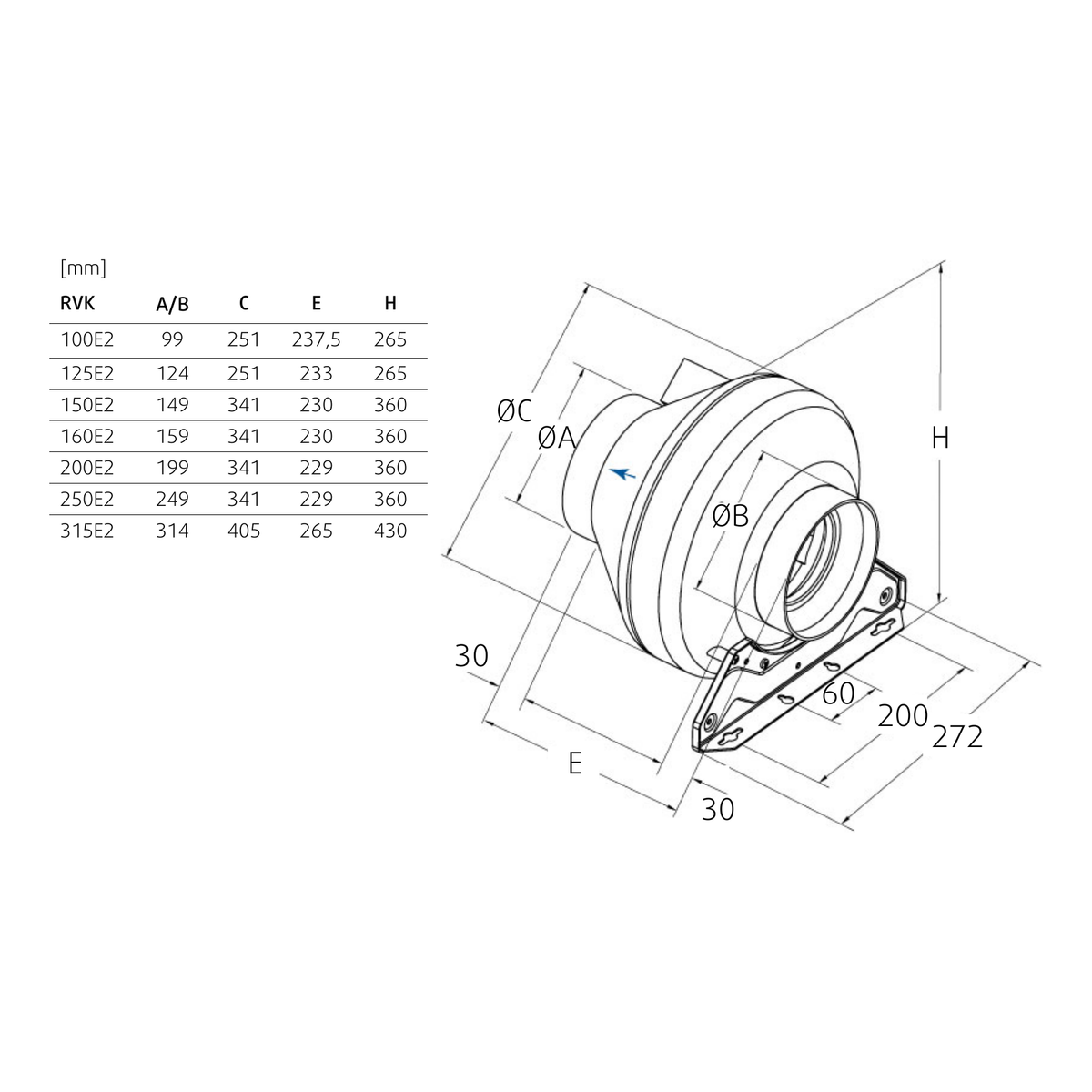

Dimensions are from the Systemair RVK installation and operating instructions. See the dimension drawing in the product images.
Ideal for
- Extracting warm, humid air from grow tents and grow rooms
- Pulling air through a carbon filter of the same duct size for odour control
- Drawing fresh air into a grow tent or grow room as an intake fan
- Quieter running at lower speeds with a compatible fan speed controller
