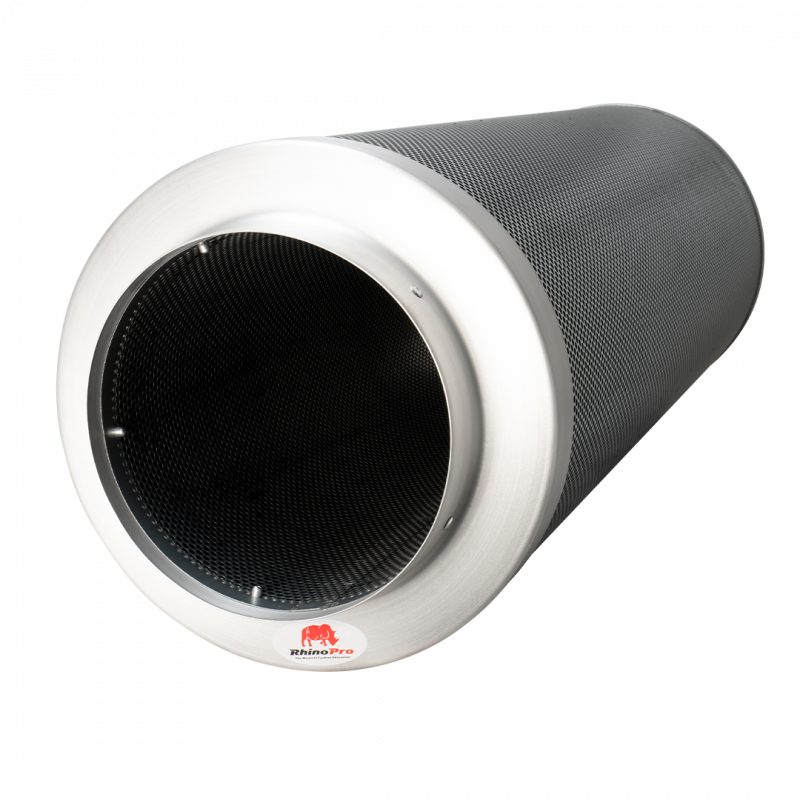

Rhino PRO Carbon Filter
Rhino PRO Carbon Filter
Couldn't load pickup availability
Description
Description
Rhino Pro carbon filters take odours and VOCs out of the air leaving your grow room or tent. Each one is packed with a deep 50mm bed of virgin Australian RC4-12 activated carbon, so it keeps working for a long time. Rhino rate the Pro range at up to around two years in normal conditions.
The aluminium casing keeps the weight down, and the outer mesh has a 51% open area so air is drawn evenly across the carbon. A coned base inside the filter spreads the airflow along its full length, and the carbon is machine packed so it stays dense and does not settle over time.
Key features
- 50mm carbon bed of virgin Australian RC4-12 activated carbon
- Machine-packed carbon for a dense, even bed
- 51% open-area outer mesh for even airflow over the carbon
- Coned internal base to spread air through the whole filter
- Lightweight aluminium construction
- Working life of up to around two years in normal use
- 11 sizes, from 100mm to 315mm flange
Choosing a size
Sizes are shown as flange diameter x filter length, in millimetres. Pick a flange that matches your fan and ducting, and a filter whose maximum airflow is equal to or a little above your fan's output, so the air spends enough time in contact with the carbon.
Technical specifications
| Size (mm) | Flange | Length | Max airflow | Carbon bed |
|---|---|---|---|---|
| 100 x 300 | 100mm (4") | 300mm | 350 m³/h | 50mm |
| 125 x 300 | 125mm (5") | 300mm | 500 m³/h | 50mm |
| 150 x 300 | 150mm (6") | 300mm | 600 m³/h | 50mm |
| 150 x 600 | 150mm (6") | 600mm | 900 m³/h | 50mm |
| 200 x 400 | 200mm (8") | 400mm | 800 m³/h | 50mm |
| 200 x 600 | 200mm (8") | 600mm | 1,125 m³/h | 50mm |
| 250 x 600 | 250mm (10") | 600mm | 1,420 m³/h | 50mm |
| 250 x 1000 | 250mm (10") | 1000mm | 1,900 m³/h | 50mm |
| 315 x 600 | 315mm (12") | 600mm | 2,440 m³/h | 50mm |
| 315 x 1000 | 315mm (12") | 1000mm | 3,250 m³/h | 50mm |
| 315 x 1200 | 315mm (12") | 1200mm | 3,600 m³/h | 50mm |
Airflow figures are Rhino's maximum ratings for each filter.
Tips
- Fit the fan as close to the filter as you can so it pulls air evenly through the carbon.
- Very damp air shortens carbon life, so keep humidity under control.
- Pairs well with the Rhino Ultra EC fans, silenced or non-silenced.
