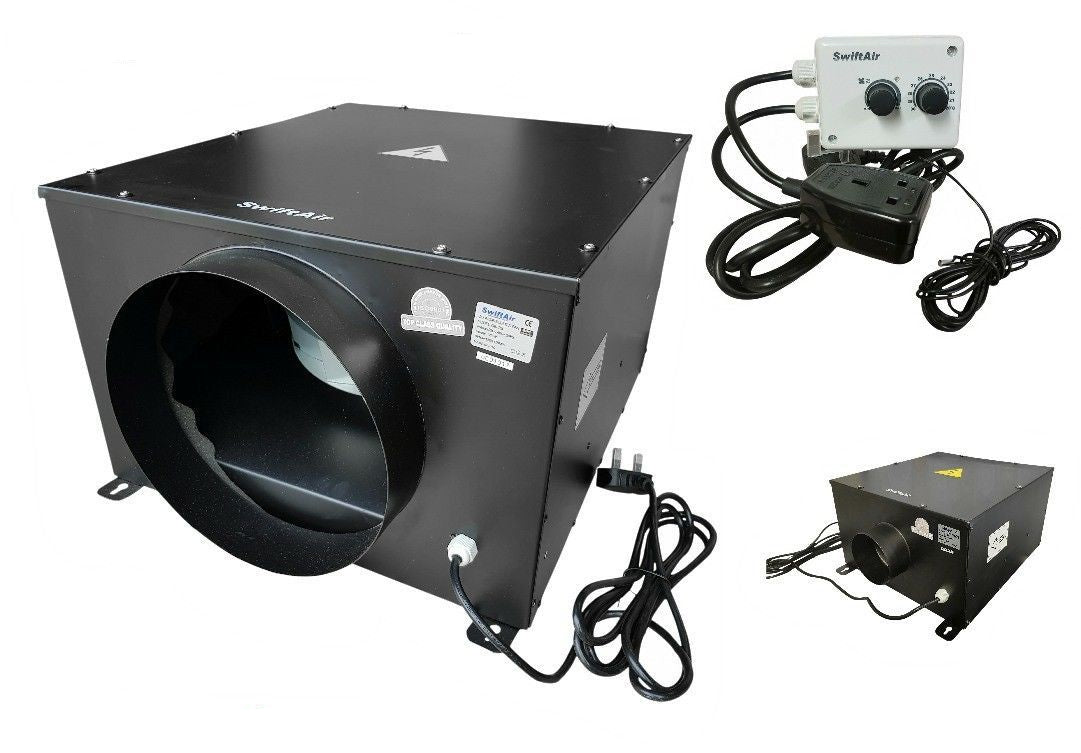

QBF Acoustic Inline Box Fan with Temperture Controller

4 5 6 8 10 12" HYDROPONIC GROW ROOM QUIET BOX FAN TEMPERATURE & SPEED CONTROL
Regular price £114.99

Quiet Box Fan (QBF) fan design allows for supply and extract ventilation for areas/rooms with high requirements to low noise levels and limited mounting space.

Temperature Controller is included

Units can be installed above ceilings or in loft spaces. Suitable for connection with 100 (4"), 125 (5"), 150 (6"), 200 (8"), 250 (10") and 315 (12") mm round ducts.



Sound level and Fan Volume



100mm - 240m3/hr - 33 dBA



125mm - 330m3/hr - 35 dBA



150mm - 420m3/hr - 36 dBA



200mm - 730m3/hr - 38 dBA



250mm - 1300m3/hr - 41 dBA



315mm - 2150m3/hr - 43 dBA



Design



The fan casing is made of galvanized steel sheet and provided with heat- and sound-insulating material.



Motor





The centrifugal impeller with back-curved blades is powered by means of 2-pole asynchronous motor with external rotor. The motors are equipped with built-in thermal overheating protection with automatic restart. Motor ball bearings with selective lubricating oil ensure low-noise and maintenance-free operation.





  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •


Quiet Box Fan (QBF) fan design allows for supply and extract ventilation for areas/rooms with high requirements to low noise levels and limited mounting space.

Temperature Controller is included

Units can be installed above ceilings or in loft spaces. Suitable for connection with 100 (4"), 125 (5"), 150 (6"), 200 (8"), 250 (10") and 315 (12") mm round ducts.



Sound level and Fan Volume



100mm - 240m3/hr - 33 dBA



125mm - 330m3/hr - 35 dBA



150mm - 420m3/hr - 36 dBA



200mm - 730m3/hr - 38 dBA



250mm - 1300m3/hr - 41 dBA



315mm - 2150m3/hr - 43 dBA



Design



The fan casing is made of galvanized steel sheet and provided with heat- and sound-insulating material.



Motor





The centrifugal impeller with back-curved blades is powered by means of 2-pole asynchronous motor with external rotor. The motors are equipped with built-in thermal overheating protection with automatic restart. Motor ball bearings with selective lubricating oil ensure low-noise and maintenance-free operation.
