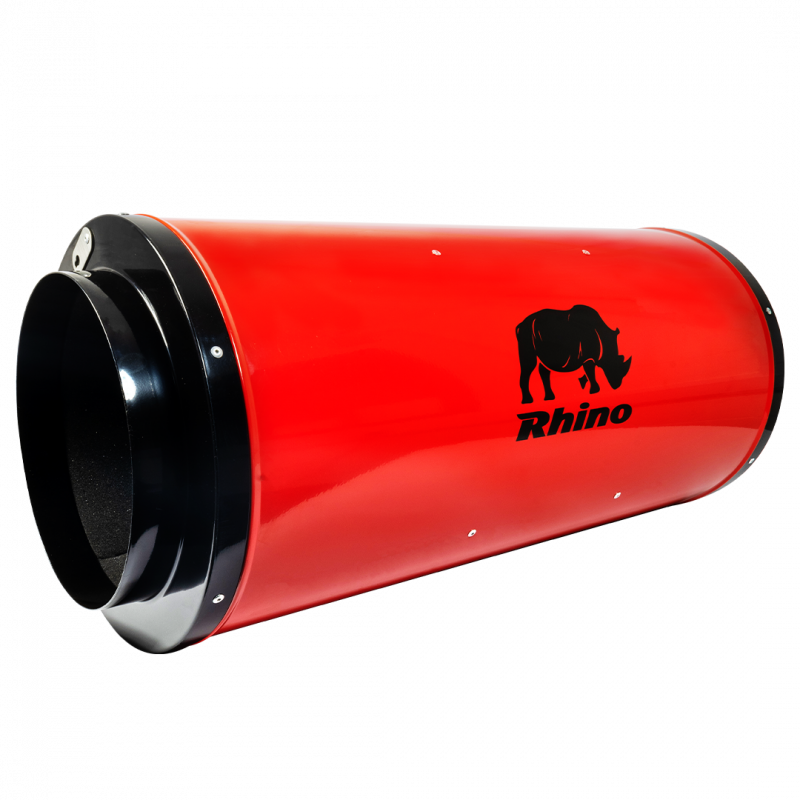

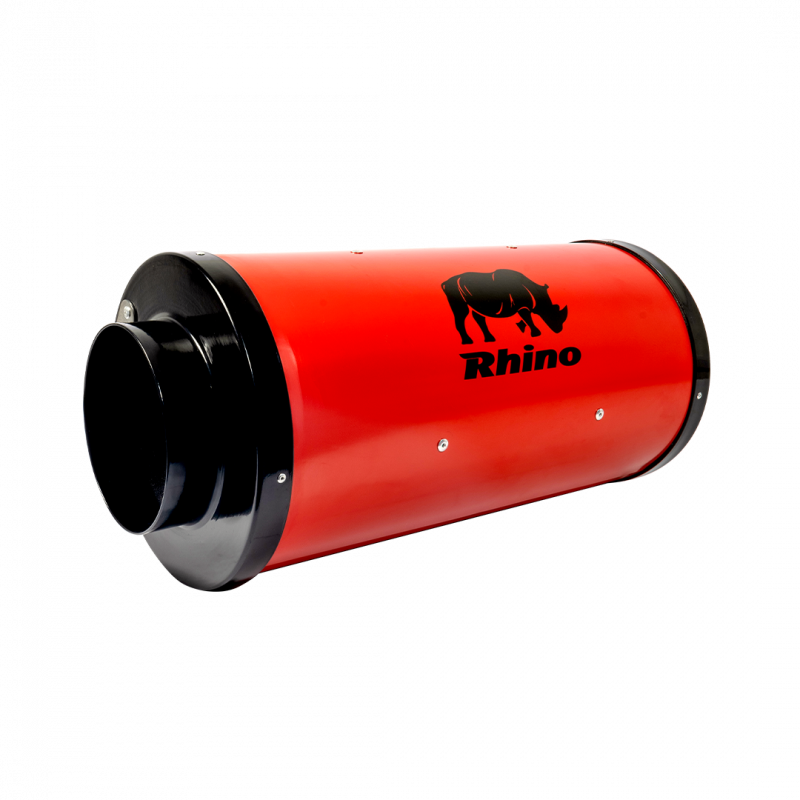

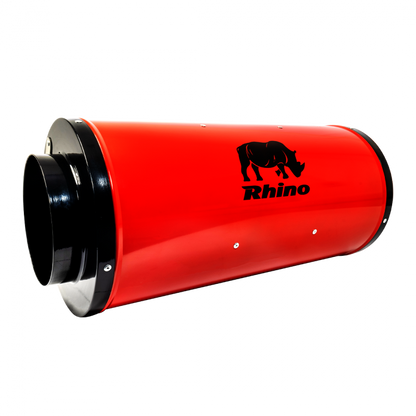

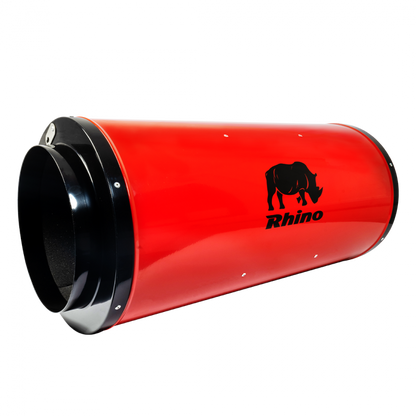

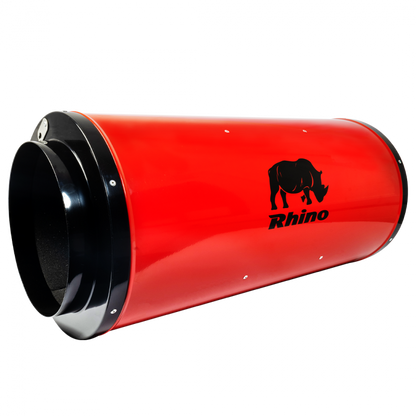

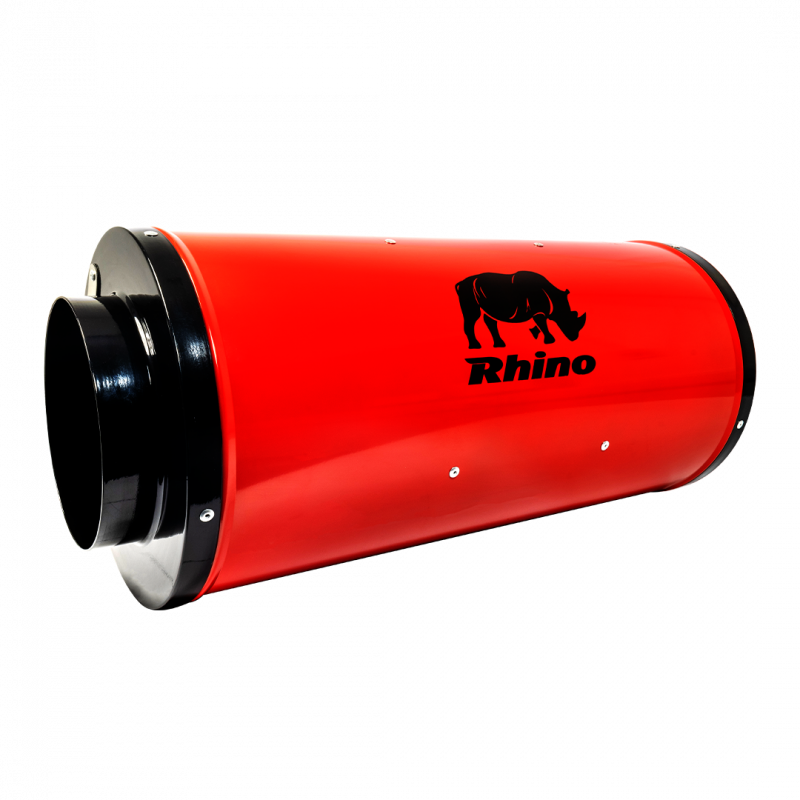

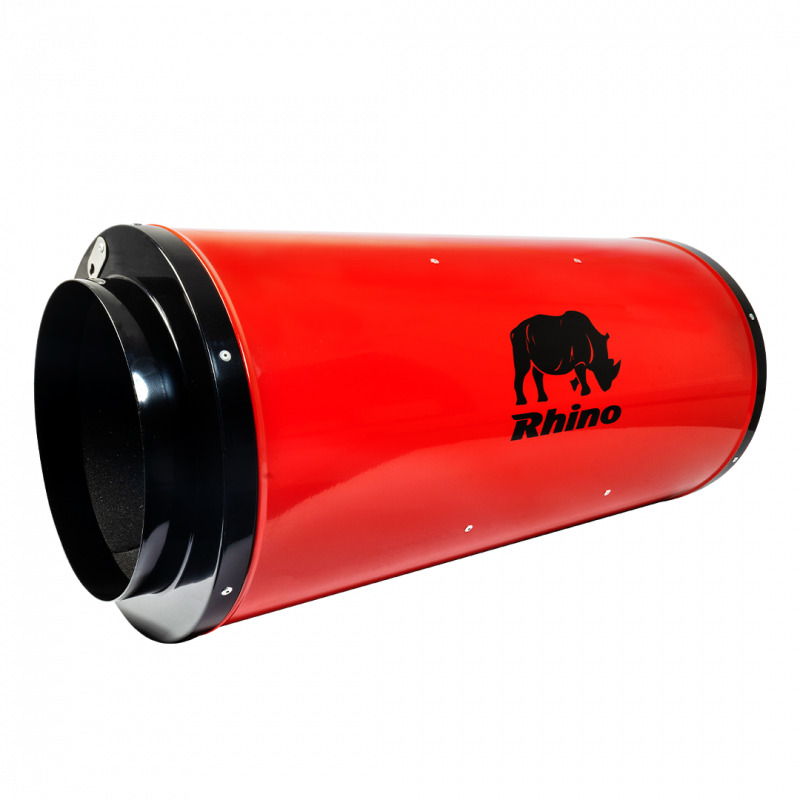

Rhino Ultra Silenced EC Fan
Rhino Ultra Silenced EC Fan
Couldn't load pickup availability
Description
Description
The Rhino Ultra Silenced EC fan is a quiet, energy-efficient inline extractor for grow rooms and tents. Its steel body is lined with acoustic foam, which Rhino say cuts fan noise by more than half compared with an unsilenced fan, even at full speed.
The EC motor and mixed-flow impeller move high volumes of air at good pressure, which is what you need when pulling air through a carbon filter and ducting. Speed is fully adjustable from 0 to 100% with no humming or buzzing, and a soft start brings the motor up to speed gently to protect it and avoid power surges. A speed controller is included in the box.
Key features
- EC motor with mixed-flow impeller: high airflow at high pressure
- Acoustic-lined steel body for much quieter running
- Fully variable speed, 0 to 100%
- Soft start function
- Speed controller included
- Adaptors supplied for controllers with RJ45 or 3-pin connections; a jack-plug controller plugs straight in
- Uses less power than a comparable AC fan
- Built-in eyelets for easy hanging
Technical specifications
| Size | Max airflow | Power | Max speed | Noise | Static pressure | IP rating |
|---|---|---|---|---|---|---|
| 150mm (6") | 530 m³/h | 40W | 5,000 RPM | 50 dB(A) | 500 Pa | IPX4 |
| 200mm (8") | 1,205 m³/h | 75W | 3,800 RPM | 52 dB(A) | 520 Pa | IPX4 |
| 250mm (10") | 1,808 m³/h | 150W | 3,200 RPM | 55 dB(A) | 510 Pa | IPX4 |
| 315mm (12") | 2,987 m³/h | 320W | 3,000 RPM | 66 dB(A) | 677 Pa | IP64 |
Figures are Rhino's maximum ratings. Real-world airflow, noise and pressure depend on your controller, ducting and filter.
Good to know
- The fan needs a speed controller connected to run.
- Match it with a Rhino Pro or Rhino Hobby carbon filter of the same flange size.
